MAG 524w3 4K
$149.99
Mag 524w3 4k Wifi Set Top Box
4K Linux set-top box MAG524w3
MAG524w3 are high-performance 4K Linux set-top boxes. These next-gen MAG devices feature an Amlogic S905X2 chipset, a new GPU, and a 25% more powerful ARM Cortex-A53 processor.
With these devices, operators can offer uninterrupted services and a high-quality user experience. The MAG JS API ensures easy migration from early MAG set-top boxes to modern models. Upon request, we integrate MAG524 and MAG524w3 with third-party middleware and CAS/DRM.
Linux 4.9, Amlogic S905X2 chipset, IR remote control, 4K and HEVC support, 1 GB RAM, 4 GB eMMC, HDMI 2.1 output, USB 3.0, USB 2.0, 2.4, and 5 GHz Wi-Fi module (MAG524w3 only).
Specifications:
Dimensions
| Width/depth/height, mm | 115x115x28 |
| Weight, g | 170 |
Hardware
| Chipset | Amlogic S905X2 |
| Processor | Quad-core ARM Cortex-A53, 1,900 MHz |
| Performance | 18,400 DMIPS |
| RAM | 1 GB DDR3 |
| Flash memory | 4 GB eMMC |
Software
| Operating system | Linux 4.9 |
| Middleware supported | Pre-integrated Ministra TV platform. Image enhancement with operator apps, customization, or a full replacement is available |
Interfaces
| Ports | HDMI 2.1, Ethernet 100 Mbps, 1 × USB 3.0, 1 × USB 2.0, built-in 2T2R ac Wi-Fi module |
Audio & video
| Audio сodecs | MPEG L1/L2/L3l, AAC-LC, HE AAC V1/V2, APE, FLAC, Dolby Digital Plus™ |
| Video modes | 2160p, 1080i, 1080p, 720p, 576p, NTSC, PAL |
| Video сodecs | H.265/HEVC (optional), H.264 (AVC), MPEG-1/2, MPEG-4, XviD, 3D video support |
| Video containers | TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP |
| Image formats | JPEG, PNG, BMP, RAW |
| Subtitles | DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVTT, closed captions |
| Playlist formats | M3U, M3U8, PLS, CUE |
Standard set

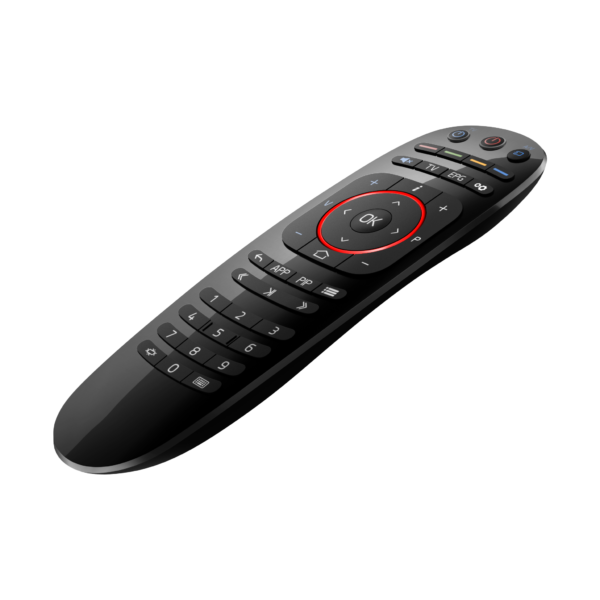

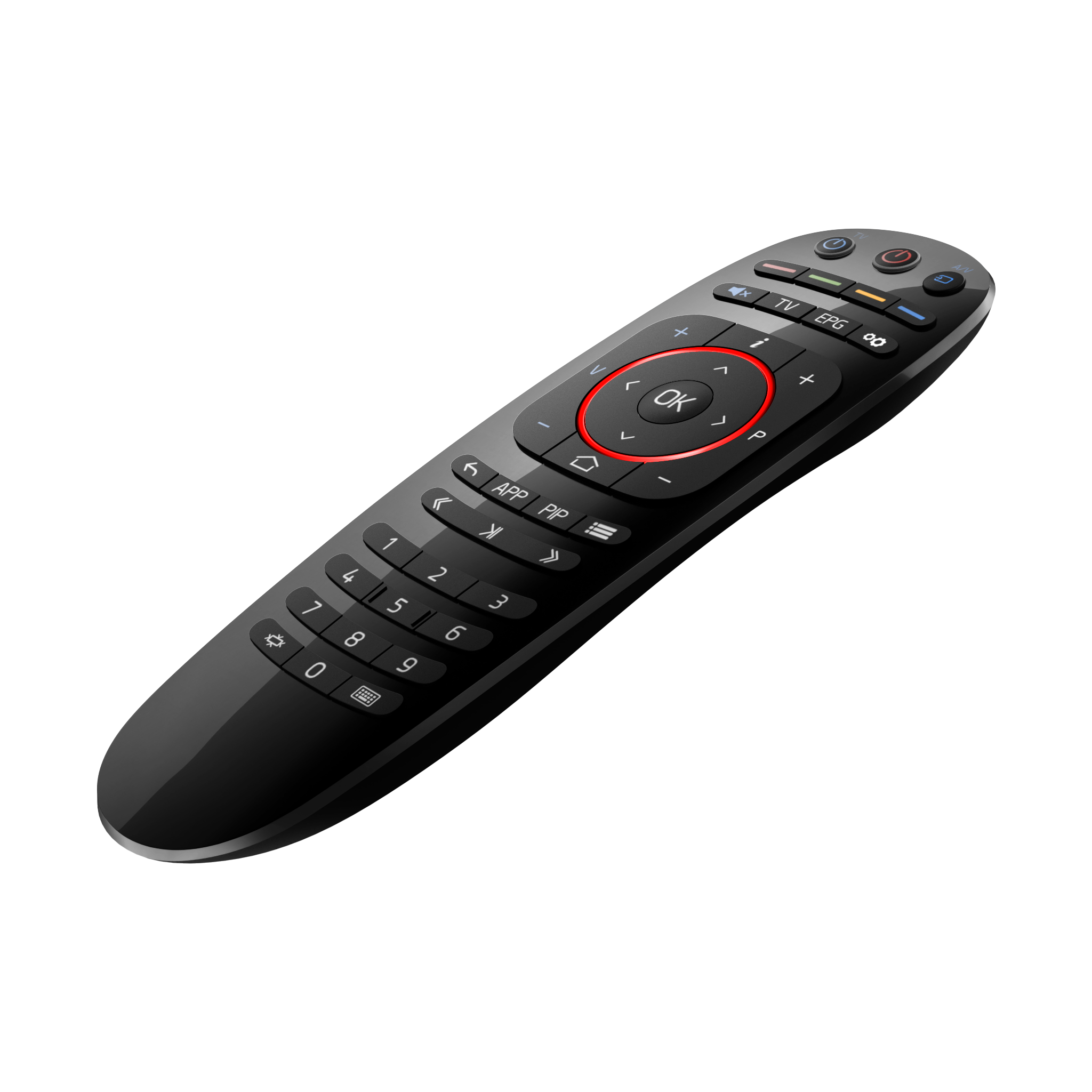

| Whats Include in Box | A MAG524w3 set-top box, a user manual, an HDMI cable, a 12V 1A power adapter, a remote control, two AAA batteries, and packaging |
